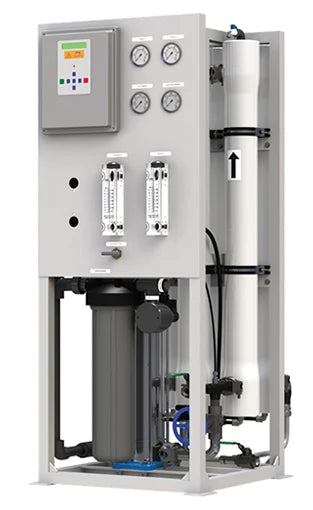

R2 Series Commercial Reverse Osmosis System 1,500 to 9,000 GPD

Call For Price

Description

The R2 Series Commercial Reverse Osmosis System is engineered for reliable, high performance water purification in space-constrained installations. Designed to treat well water and surface water with dissolved solids levels up to 10,000 ppm, this system delivers consistent results while maintaining a compact footprint ideal for utility rooms and light commercial environments.

With production capacities ranging from 1,500 to 9,000 gallons per day, the R2 Series features an integrated computer controller that manages critical system functions including dual TDS monitoring, feed flush cycles, low pressure protection with alarm, pretreatment lockout, and tank level input. These intelligent controls help ensure stable operation, membrane protection, and long-term efficiency.

The system is built using premium components commonly found in commercial-grade AXEON reverse osmosis platforms. Key elements include a stainless steel multistage high pressure pump, low energy membrane elements, 450 psi rated membrane housings, and a 5 micron sediment pre-filter housed in a heavy duty cartridge assembly. All components are pre-plumbed, wired, assembled, and individually tested to simplify installation and commissioning.

Optional configurations are available to further tailor the system to specific applications, including permeate divert, variable frequency drive control, chemical injection, and clean in place functionality.

Specifications

Specifications
MODELS R2-1140 R2-2140 R2-3140 R2-4140 R2-5140 R2-6140
Design
Configuration Single Pass Single Pass Single Pass Single Pass Single Pass Single Pass
Feedwater SourceA TDS < 10,000 ppm TDS < 10,000 ppm TDS < 10,000 ppm TDS < 10,000 ppm TDS < 10,000 ppm TDS < 10,000 ppm
Standard Recovery Rate % 15-25 30-40 40-50 40-55 40-60 40-65
Rejection and Flow RatesB
Nominal Salt Rejection % 99.2 99.2 99.2 99.2 99.2 99.2
Permeate Flow Rate (gpm / lpm) 1.04 / 3.94 2.08 / 7.89 3.13 / 11.83 4.17 / 15.77 5.21 / 19.72 6.25 / 23.66
Minimum Concentrate Flow Rate (gpm / lpm) 4.04 / 15.30 5.08 / 19.20 6.13 / 23.20 7.17 / 27.10 8.21 / 31.10 9.25 / 35.00
Maximum Feed Flow (gpm / lpm) 14.00 / 53.00 14.00 / 53.00 14.00 / 53.00 14.00 / 53.00 14.00 / 53.00 14.00 / 53.00
Minimum Concentrate Flow Rate (gpm / lpm) 3.00 / 11.36 3.00 / 11.36 3.00 / 11.36 3.00 / 11.36 3.00 / 11.36 3.00 / 11.36
Connections
Feed FNPT (in) 1 FNPT 1 FNPT 1 FNPT 1 FNPT 1 FNPT 1 FNPT
Permeate Tubing (in) 3/4 FNPT 3/4 FNPT 3/4 FNPT 1 FNPT 1 FNPT 1 FNPT
Concentrate Tubing (in) 3/4 FNPT 3/4 FNPT 3/4 FNPT 1 FNPT 1 FNPT 1 FNPT
CIP (in) 3/4 FNPT 3/4 FNPT 3/4 FNPT 3/4 FNPT 3/4 FNPT 3/4 FNPT
Membranes
Membranes Per Vessel 1 1 1 1 1 1
Membrane Quantity 1 2 3 4 5 6
Membrane Size 4040 4040 4040 4040 4040 4040
Vessels
Vessel Array 1 1:1 1:1:1 1:1:1:1 1:1:1:1:1 1:1:1:1:1:1
Vessel Quantity 1 2 3 4 5 6
Pumps
Pump Type Multi-Stage Multi-Stage Multi-Stage Multi-Stage Multi-Stage Multi-Stage
Motor HP 3 3 3 5 5 5
RPM @ 60Hz (50 Hz) 3450 (2900) 3450 (2900) 3450 (2900) 3450 (2900) 3450 (2900) 3450 (2900)
System Electrical
Standard Voltage + Amp Draw 220V, 60Hz, 1PH, 14.5AC 220V, 60Hz, 1PH, 14.5AC 220V, 60Hz, 1PH, 14.5AC 220V, 60Hz, 3PH, 14.2AC 220V, 60Hz, 3PH, 14.2AC 220V, 60Hz, 3PH, 14.2AC
High Voltage Service + Amp Draw 220V, 50Hz, 1PH, 17.4AC
220V, 50Hz, 3PH, 0.6AC
220V, 60Hz, 3PH, 9AC
460V, 60Hz, 3PH, 5AC 		220V, 50Hz, 1PH, 17.4AC
220V, 50Hz, 3PH, 0.6AC
220V, 60Hz, 3PH, 9AC
460V, 60Hz, 3PH, 5AC 		220V, 50Hz, 1PH, 17.4AC
220V, 50Hz, 3PH, 0.6AC
220V, 60Hz, 3PH, 9AC
460V, 60Hz, 3PH, 5AC 		220V, 50Hz, 3PH, 16.1AC
220V, 60Hz, 3PH, 9AC
460V, 60Hz, 3PH, 7AC 		220V, 50Hz, 3PH, 16.1AC
220V, 60Hz, 3PH, 9AC
460V, 60Hz, 3PH, 7AC 		220V, 50Hz, 3PH, 16.1AC
220V, 60Hz, 3PH, 9AC
460V, 60Hz, 3PH, 7AC
System Dimensions
Approximate Dimensions D L x W x H (in / cm) 27 x 26 x 61 / 69 x 66 x 155 27 x 26 x 61 / 69 x 66 x 155 30 x 26 x 61 / 75 x 66 x 155 32 x 26 x 61 / 80 x 66 x 155 32 x 26 x 61 / 80 x 66 x 155 32 x 26 x 61 / 80 x 66 x 155
Approximate Weight (lbs/Kg) 560 / 250 590 / 270 620 / 280 650 / 300 680 / 310 700 / 320
Test Parameters: 10,000 TDS Filtered (5-Micron), Dechlorinated, Municipal Feedwater, 65 psi / 4.50 bar Feed Pressure, 350 psi / 24.13 bar Operating Pressure, 77°F / 25°C, Recovery as stated, 7.0 pH. Data taken after 60 minutes of operation.
A. Low temperatures and feedwater quality, such as high TDS levels will significantly affect the systems production capabilities and performance. Computer projections must be run for individual applications which do not meet or exceed minimum and maximum operating limits for such conditions.
B. Product flow and maximum recovery rates are based on feedwater conditions as stated above. Do not exceed recommended permeate flow.
C. Varies with motor manufacturer
D. Does not include operating space requirements.
Array Specifications
Model Vessel Array Vessel Size Vessel Quantity Membrane Size Membrane Quantity
R2-1140 1 4040 1 4040 1
R2-2140 1:1 4040 2 4040 2
R2-3140 1:1:1 4040 3 4040 3
R2-4140 1:1:1:1 4040 4 4040 4
R2-5140 1:1:1:1:1 4040 5 4040 5
R2-6140 1:1:1:1:1:1 4040 6 4040 6

Options and Upgrades

Options and Upgrades
  • S-150 Expander Board
  • Variable Frequency Drive (VFD)
  • Filmtec LCHR Membrane Elements
  • Pump Pressure Relief Valve
  • Blending Valve
  • Permeate Divert Valve
  • Permeate Flush
  • Chemical Pump Outlet
  • Hanna BL 981411 pH Controller
  • Hanna BL 982411 ORP Controller
  • High Pressure Tank Switch
  • Caster Wheels
  • Wooden Shipping Crate

Drawings

AXEON R2 Series Dimensional Drawings
Notes:
  • All dimensions are given in inches.
  • R2-6140 AXEON model shown.
AXEON R2 Series System Flow Diagram

Downloads

SPECIFICATION SHEET SYSTEM WARRANTY

Operating Limits

Operating Limits
Maximum Feed Temperature (°F / °C) 85 / 29 Maximum Free Chlorine (ppm) 1
Minimum Feed Temperature (°F / °C) 40 / 4 Maximum TDS (ppm) 10,000
Maximum Ambient Temperature (°F / °C) 120 / 49 Maximum Hardness (gpg) < 1
Minimum Ambient Temperature (°F / °C) 40 / 4 Minimum pH (continuous) 2
Maximum Feed Pressure (psi / bar) 85 / 6 Maximum pH (continuous) 11
Minimum Feed Pressure (psi / bar) 45 / 3 Minimum pH (cleaning 30 minutes) 1
Maximum Operating Pressure (psi / bar) 400 / 28 Maximum pH (cleaning 30 minutes) 13
Maximum Feed Silt Density Index (SDI) < 3 Maximum Turbidity (NTU) < 1

System pressure is variable due to water conditions. Permeate flow will increase at higher temperatures and decrease at lower temperatures.

Features and Benefits

Features
  • S-150 Computer Controller
  • LCD Backlit Display
  • Pre-Treatment Lockout
  • Tank Level Input
  • High Pressure Monitoring with Alarm
  • Low Pressure Monitoring with Alarm
  • Dual TDS Monitoring
  • Feed Flush
  • Permeate and Concentrate Flow Meters
  • 0–100 psi Panel Mounted Glycerin Filled Gauges
  • 0–600 psi Glycerin Filled Pump Discharge and Concentrate Gauges
  • 5-Micron Sediment Pre-Filter
  • Pentair Single O-Ring Heavy-Duty Filter Housing
  • Low Energy RO Membrane Elements
  • FRP Membrane Housings Rated to 450 psi
  • Vertical Multi-Stage Stainless Steel Booster Pump
  • Plastomatic Feed Solenoid Valve
  • Clean-in-Place Ports
  • High Pressure Stainless Steel Tubing and Fittings
  • White Powder Coated Aluminum Frame
Benefits
  • Fully equipped and customizable platform
  • Expandable and skid mounted design
  • Reduced overall footprint for tight installations
  • Components easily accessible for service
  • Pre-plumbed, wired, and factory assembled
  • Individually tested and preserved
  • Low operating and maintenance costs
  • Easy maintenance and servicing
  • Backed by a one year limited warranty
