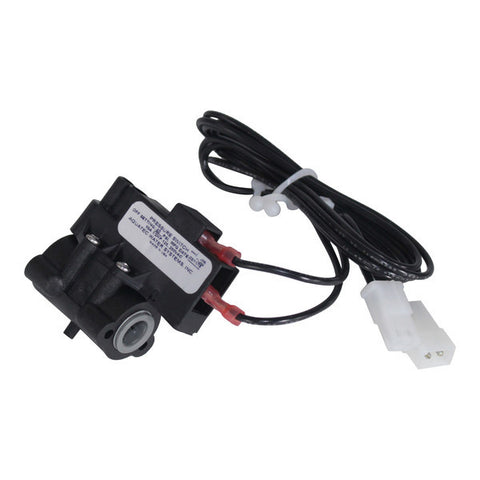

Pump Switch 3/8" Quick Connect

SKU# 299061
  • Sale
  • Regular price $30.00


Pump Switch 3/8" Quick Connect pressure switch is used to control the on/off of the Aquatec booster pump 6800 series and 8800 series.  The typical usage is with reverse osmosis water systems. Instructions are in the package, 100% tested.



This pressure switch comes with quick connect wire plugs that connect quickly to Aquatec booster pump and transformer. Comes with built-in John Guest half cartridges.

This switch has 3/8" inlet and outlet quick connect fitting.  All you need to do is push in a 3/8" OD tubing into the inlet and outlet all the way in, the fitting will seal itself.  To remove the tubing, you just need to push the plastic ring firmly agaist the fitting then you can pull out the tubing.

Pressure Setting:   It is pre-set at 40 psi cut-off pressure, but it is adjustable. It has an adjustable range of 30 to 60 psi

Operation:  When the pressure switch is connected to a Aquatec pump and transformer, it will turn on the pump when pressure switch is sensing below 40 psi, then it will turn off the pump when the pressure is sensing 40 psi or above.
