Mightypure Ultraviolet Water Systems | UV Water Disinfection Systems | MightyPure UV System

Mightypure Ultraviolet Water Systems | UV Water Disinfection Systems

SKU#
  • Sale
  • $626.00

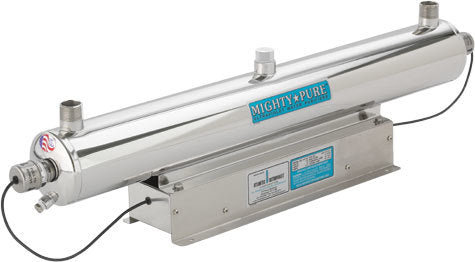

Mightypure Ultraviolet UV Water Systems

MightyPure® Product Features

Quick Lamp Change - Exclusive Easy-Off™ Retainer Cap enables effortless lamp replacement without shut down of water pressure or drainage of tank. No tools required.

Drain Plug - Convenient, in-place drainage of purifier chamber.

Stainless Steel Construction - Type 316 Stainless steel chamber is electropolished and passivated for an attractive finish and dependable service.

Fused Quartz Sleeve - Insures optimum lamp output at normal potable water temperatures.

Sight Port Plug - Visible glow provides positive indication of germicidal lamp operation.

Effective - virtually all microorganisms are susceptible to MightyPure®  ultraviolet disinfection.
Economical - hundreds of gallons are purified for each penny of operating cost.
Safe - no danger of overdosing, no addition of chemicals.
Fast - water is ready for use as soon as it leaves the purifier – no further contact time required.
Easy - simple installation and maintenance. Compact units require minimum space.
Automatic - provides continuous disinfection without special attention or measurement.
Chemical Free - no chlorine taste or corrosion problems.
Versatile - Capacities available from 3 to 20 gallons per minute.

- 3 to 20 gallons per minute [gpm]
- 120 to 1200 gallons per hour [gph]
- Potable & high purity water applications
- Type 316 Stainless Steel, electropolished and passivated
- Easy-Off™ Retainer Cap for effortless lamp change
- Drain Plug for in place drainage of the purifier
- Sight port to view germicidal lamp operation
- UL Approved Ballast

(1) The water enters the purifier and flows into the annular space between the quartz sleeve and the chamber wall.
(2) Translucent sight port provides positive indication of germicidal lamp operation.

(3) Water leaving the purifier is instantly ready for use.



MightyPure® Residential and Commercial Models
[UV Water Purifier Comparison Chart]
Model GPM GPH Inlet
and
Outlet [NPT](1)		 Replacement
Lamps		 Power
Consumption [Watts] (2)		 Unit Dimensions
(in.)		 Shipping Data (lb.)
Length Width Height Gross Wt. Net Wt.
MP16A 3 180 3/4" 05-1098-R 18 19-1/2 4-5/16 8-3/16 10 9
MP22A 6 360 3/4" 05-1097-R 24 22-1/2 4-5/16 8-3/16 13 11
MP36C
CE Certified		 12 720 1" 05-1343-R 44 36-1/2 5-11/16 9-1/2 30 25
MP49C 20 1,200 1-1/2" 05-1334-R 54 49-1/2 5-11/16 9-1/2 34 29
CE/RoHS
MP36C 12 720 1" 05-1343-R 44 36-1/2 5-11/16 9-1/2 30 25
(1) All inlets and outlets are male pipe thread.
(2) Total power consumption including ballast loss (approximately).
• Maximum recommended operating pressure for all purifiers is 100 PSI.
• Pressure drop at maximum recommended flow rate is less than 5 PSI.
• All data shown reflects 120 Volt 50/60 Hz operation. MightyPure® units are also available in 220 Volt 50/60 Hz, 12 and 24DC.
• MightyPure® is available for operation on public power supplied throughout the world.
• Consult factory with specific power requirements.
•  These units are 316 Stainless Steel, electropolished and passivated inside and out
MightyPure® Installation & Maintenance

The purifier is installed as close as possible to the point of use. Connection of the inlet and outlet to water supply and insertion of plug into 3-wire grounded outlet is all that is required.

Ordinary maintenance consists of cleaning the quartz sleeve, when conditions warrant. Lamp replacement is recommended every 10,000 hours of operation (approximately 12 months of continuous service).
